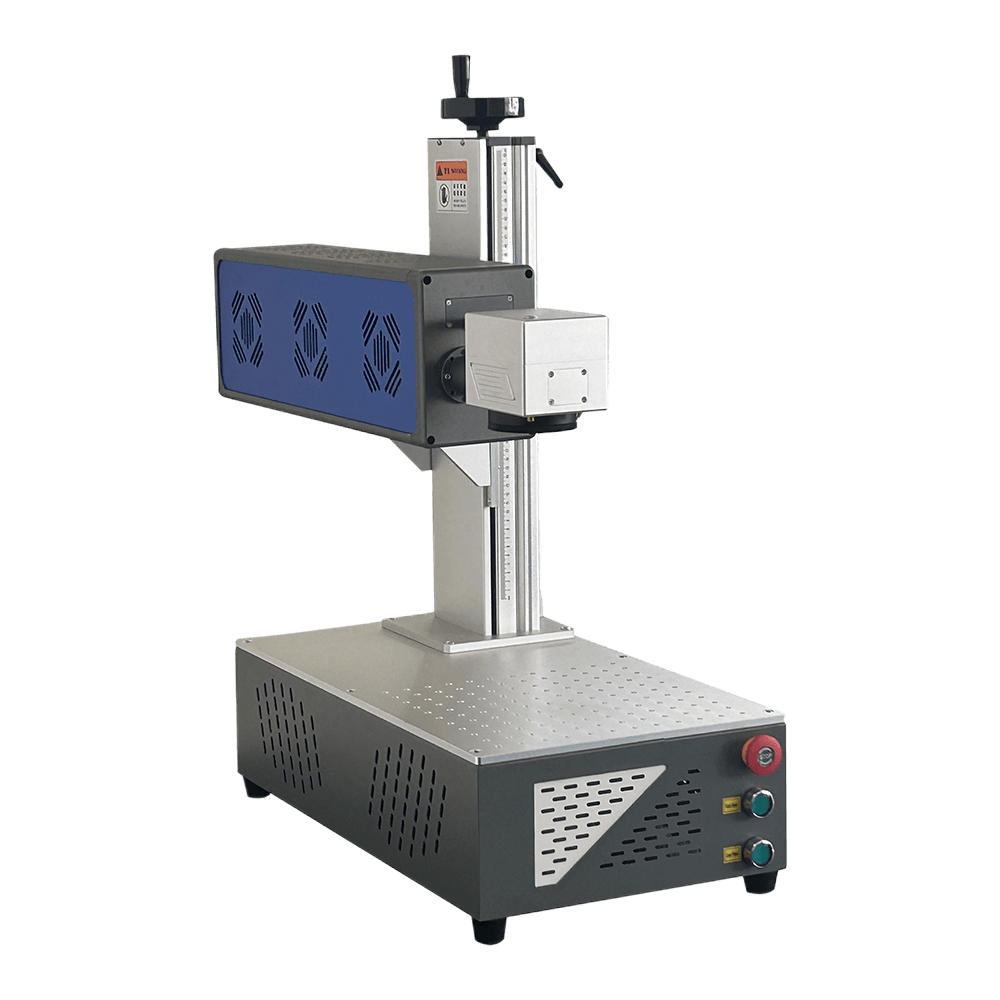

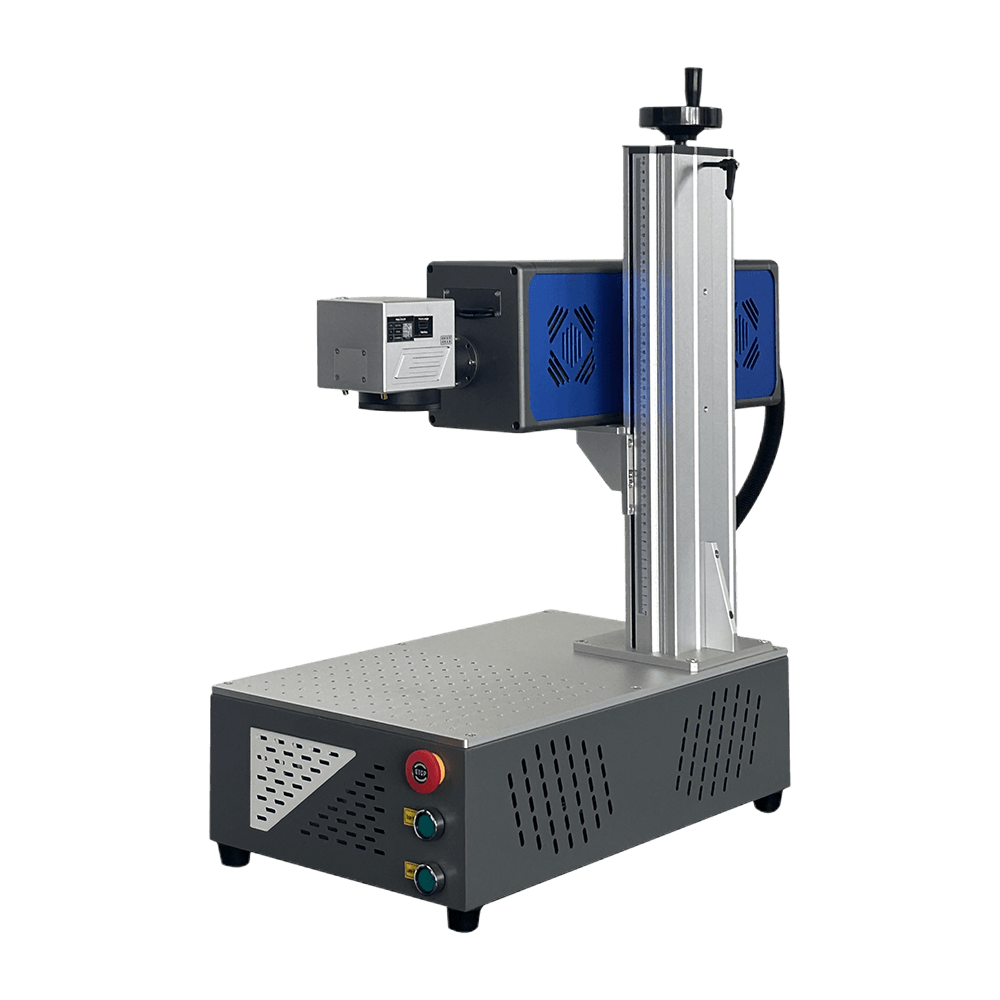

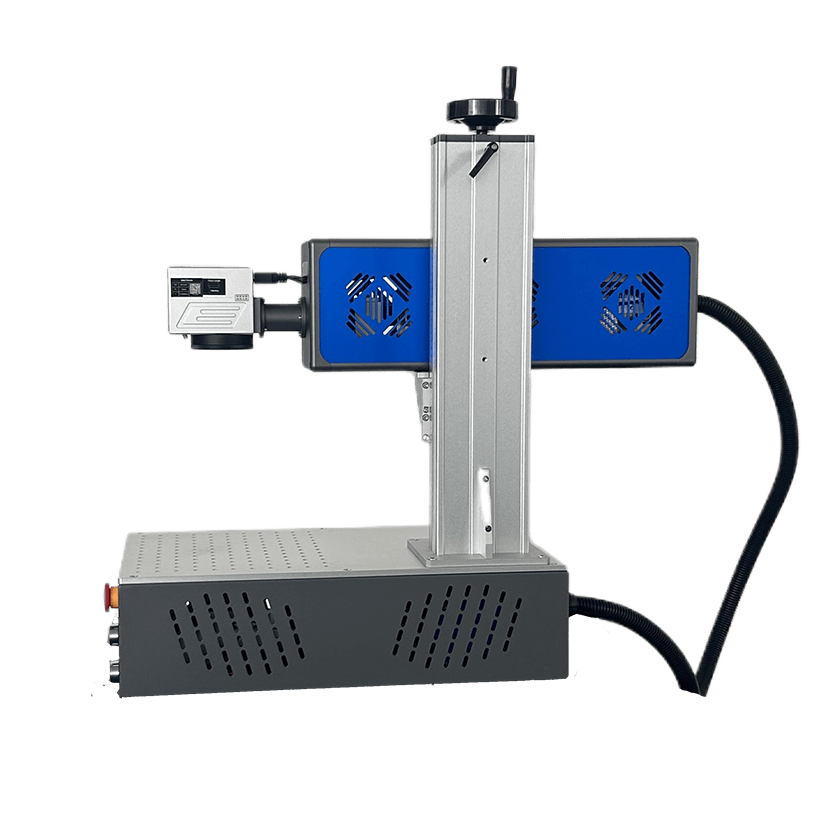

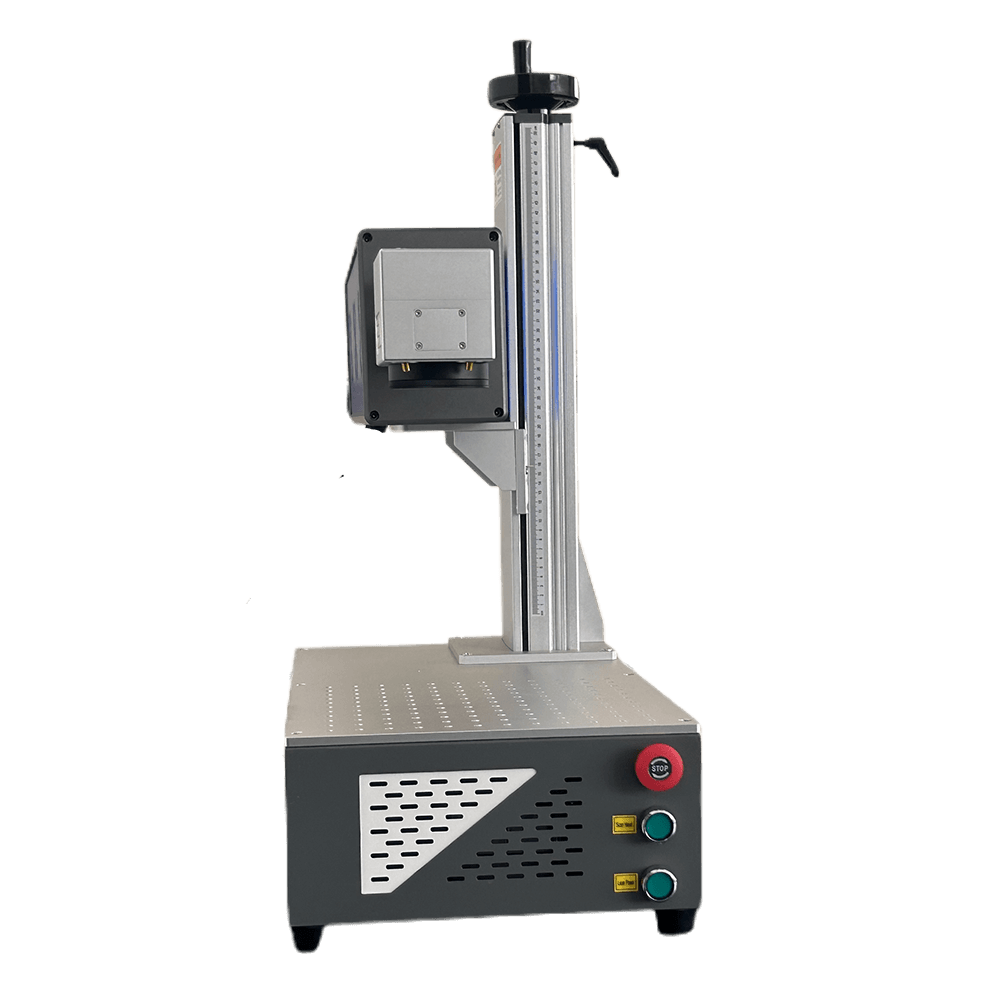

All-in-one CO2 Laser Marking Machine
Short Description:
Qtctech Laser’s CO2 laser marking machine is crafted with a compact, integrated design that maximizes space efficiency and offers excellent portability. This sleek design ensures that your workspace remains organized and easy to navigate, making it ideal for facilities where space optimization is key.
Equipped with advanced machine tool lighting, our CO2 laser marker enhances marking precision while also significantly boosting operational safety. This upgrade is vital for improving production efficiency and maintaining high-quality standards. With Qtctech Laser’s CO2 laser marking machine, you can expect consistent and reliable results, allowing you to elevate your production capabilities to new heights.
Parameters
| Model | KR-AC30 | KR-AC40 | KR-AC60 |
| Power | 30W | 40W | 60W |
| Marking area | 110-110mm | 110-110mm | 110-110mm |
| Laser source | Davi | Davi | Davi |
| Galvanometer | RC1001 | RC1001 | RC1001 |
| Wavelength | 10.6μm | 10.6μm | 10.6μm |
| Rated output power | ≥35W | ≥40W | ≥60W |
| Power stability | ＜±8% | ＜±6% | ＜±6% |
| Beam quality | / | M²<1.3 | M²<1.2 |
| Beam diameter | / | 1.8±0.2mm | 1.8±0.2mm |
| Working frequency | 0-25KHZ | 0-25KHZ | 0-25KHZ |
| Input voltage | 48VDC±2% | 48VDC±2% | 48VDC±2% |
| Maximum average current | 12.5A | 12.5A | 25A |
| Thermal load | ＜600W | ＜600W | ＜1200W |
| Cooling system | Air cooling | Air cooling | Air cooling |

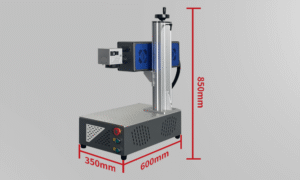

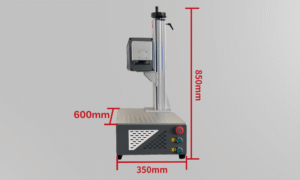

Size
What Qtctech Laser’s CO2 Laser Marking Machines Bring to You
Qtctech Laser’s CO2 laser marking machines are built to make your marking jobs easy and efficient. These machines use advanced CO2 laser technology, which works great on a wide range of materials like wood, leather, glass, plastics, and even fabrics. This means you can use them for almost anything—from engraving logos on products to making detailed designs on various surfaces.
What makes Qtctech Laser’s CO2 machines stand out? First, they are reliable and precise. With their high-quality laser beams, you get clear, sharp marks every time. This is perfect for businesses that need consistent results, whether for branding or product identification. They also come with adjustable settings, so you can control the depth and clarity of each mark to fit different needs.
Another big plus is their speed. These machines are designed to work fast without losing quality. This can help you save time and increase your output, which is great if you’re looking to boost your production efficiency. And because they use non-contact marking, there’s no wear and tear on the materials or the machine itself, meaning lower maintenance costs in the long run.
Qtctech Laser machines are also user-friendly. You don’t need to be a tech expert to operate them. They come with easy-to-understand software that lets you set up and run your marking tasks quickly. Plus, Qtctech Laser offers strong customer support to help you if you ever run into issues.
Overall, Qtctech Laser’s CO2 laser marking machines bring you precision, speed, and flexibility. They are a smart investment for any business that wants to deliver high-quality products with clear, professional marks. Whether you are in manufacturing, arts and crafts, or branding, these machines help you get the job done right every time.
How Does a CO2 Laser Marking Machine Work?
Qtctech Laser’s CO2 laser marking machines utilize advanced CO2 lasers, which are a type of molecular gas laser system. These lasers operate based on a specially formulated gas mixture composed of carbon dioxide (CO2), helium (He), nitrogen (N2), hydrogen (H2), water vapor, and xenon (Xe). The laser generation process begins with gas discharge, powered either by direct current (DC) or alternating current (AC) electricity, or through the use of Radio Frequency (RF) excitation. The energy from this discharge brings nitrogen molecules to a metastable vibrational state. These energized nitrogen molecules then collide with CO2 molecules, transferring their energy to them, which ultimately results in laser emission.
The emitted infrared laser light from Qtctech Laser’s CO2 marking machines typically has wavelengths of 9.6 and 10.6 µm. When this focused laser beam is directed from the laser tube to the surface of the target material, it rapidly evaporates the material’s surface layer, exposing deeper layers beneath. This process effectively creates a precise and permanent mark on a variety of materials, ranging from organic materials like wood and leather to synthetic materials like plastics.
The inclusion of helium in the gas mixture is crucial as it aids in efficient heat dissipation, ensuring the CO2 molecules can promptly return to their ground state. Meanwhile, hydrogen and water vapor serve an essential function by re-oxidizing carbon monoxide formed during the discharge back into carbon dioxide, maintaining the efficiency and longevity of the laser operation. This controlled and precise process is slightly different from laser cutting, which requires a higher power output for material separation rather than surface marking.
Advantages of Qtctech Laser CO2 Laser Marking Machines
Qtctech Laser CO2 laser marking machines are highly versatile and built to handle the demands of different industries, thanks to their durability and compatibility with various materials. Here’s why Qtctech Laser’s CO2 laser markers stand out:
1. Long-Lasting Laser Source
Our CO2 laser source is designed to last over 20,000 hours of service, utilizing high-quality RF metal tubes that ensure stable and efficient operation.
2. Durable and Robust Design
The CO2 laser markers from Qtctech Laser feature a strong and durable cabinet design, making them ideal for tough industrial environments where reliability is a must.
3. Customizable to Meet Your Needs
We offer customizable designs to cater to specific marking needs, ensuring each machine fits perfectly with your operational requirements.
4. Optional Smoke Purifiers for a Cleaner Workspace
To manage smoke and dust generated during marking, we provide optional smoke purifiers, helping maintain a cleaner and safer work environment.
5. Advanced Software for Superior Results
Our software is highly advanced and optimized to deliver the finest marking results, making it one of the best in the industry.
6. Cost-Effective Without Compromising Quality
Qtctech Laser’s CO2 laser markers are competitively priced, offering a more affordable option compared to many low-performance Chinese CO2 laser machines while still providing high-quality marks, consistent operation, and excellent productivity.
7. Ideal for Organic Material Marking
They are particularly effective for marking organic materials such as wood, select plastics, and ceramics, providing crisp and clear engravings.
8. Designed for Continuous Operation
Our laser modules are built to handle continuous 24-hour operations and offer a lifespan exceeding 20,000 hours, making them a highly profitable investment for any business.
9. Maintenance-Free Air-Cooled System
Unlike many other models that use water cooling systems, Qtctech Laser machines utilize an air-cooled system. This requires no maintenance and eliminates the need for consumables, reducing operational costs.
10. Capable of High-Contrast Metal Marking
Additionally, our CO2 laser machines are capable of marking painted metals, thanks to their high contrast capabilities, fast engraving speeds, and low power consumption.
All-in-one CO2 Laser Marking Machine
11. Top-Tier Technology for Maximum Efficiency
With cutting-edge technology in our software, Qtctech Laser’s engraving machines are among the top choices for industries seeking efficiency, reliability, and top-notch performance.
