All-in-one Laser Marking Machine
Short Description:
Qtctech Laser’s all-in-one laser marking machine is designed with a lightweight and compact form, making it highly portable with a weight of just 15.5 kg.
This all-in-one fiber laser marking machine from Qtctech Laser is built for efficiency and reliability. It operates without the need for consumables and requires no maintenance. With a low power consumption of only 0.35 kW per hour, it offers an energy-efficient and eco-friendly solution for your marking needs.
Parameters
| MODEL | KR-AF20 | KR-AF30 |
| OPTICAL PARAMETERS | ||
| Power | 20W | 30W |
| Galvo Head | ZBTK/Sino-galvo | ZBTK/Sino-galvo |
| Marking Area | 110mm*110mm | 110mm*110mm |
| Marking Linewidth | 0.025mm | 0.025mm |
| Minimum Character Size | 0.15mm | 0.15mm |
| Power Adjustment Range(%) | 0-100% | 0-100% |
| Marking Speed | 0-1500mm/s | 0-1500mm/s |
| Fiber Cable Length | 3m | 3m |
| Laser Wavelength | 1064nm | 1064nm |
| System Software | EZCAD2 | EZCAD2 |
| Cooling Method | Air-cooled | Air-cooled |
| MACHINE PARAMETERS | ||
| Machine Dimensions | 340mm*430mm*580mm | 350mm*600mm*850mm |
| Laser Source | MAX/Raycus/JPT | MAX/Raycus/JPT |
| Machine Weight | About 15.5Kg | About 30Kg |
| Supply voltage | 110V/220V、50/60Hz | 110V/220V、50/60Hz |
| Overall Power Consumption | 460W | 580W |

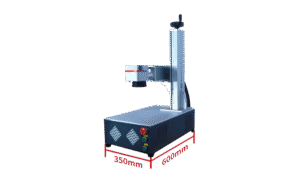

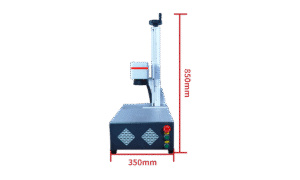

Size
What Qtctech Laser’s 20W/30W/50W Fiber Laser Marking Machines bring to you
High-Quality Markings: Deliver crisp, enduring markings with unmatched precision and power.
Versatile and Compact: The sleek, compact design fits seamlessly into diverse work environments, offering flexible application possibilities.
User-Friendly Control: Enjoy effortless operation with a control interface that’s accessible from both computers and mobile devices.
Cost-Effective Performance: Benefit from significant cost savings with a consumable-free operation, reducing ongoing expenses.
Efficiency at Its Best: Maximize productivity with rapid marking speeds and a maintenance-free build, ensuring smooth, uninterrupted workflows.
Broad Applicability: Perfect for various materials and industries, catering to a wide range of marking and engraving requirements.
Environmentally Conscious: Align with sustainable practices through energy-efficient and eco-friendly operations.
How Mini Potable Fiber Laser Engraver works
Many people may wonder whether a 20W marking machine can handle laser engraving tasks. Here, I’d like to introduce our 20W mini portable fiber laser engraver as an example. The model of this machine is KR-AM20.

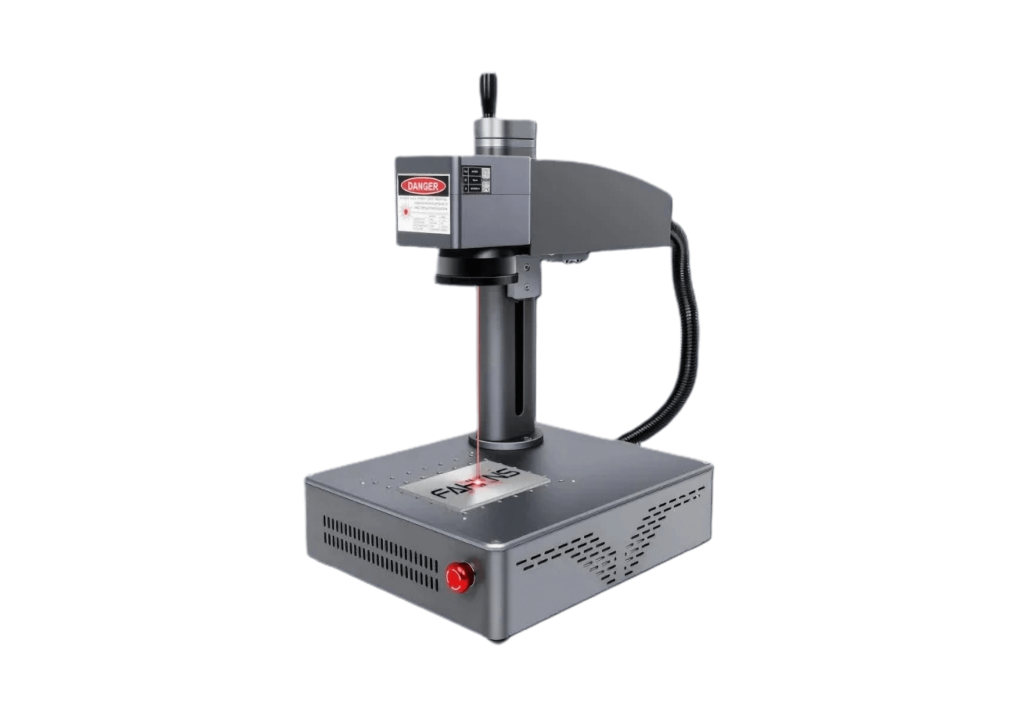

KR-AM20 Mini Fiber Laser Engraver
The KR-AM20 20W fiber laser engraver from Qtctech Laser is a compact yet powerful marking machine designed for versatility across both content types and materials.
It can engrave serial numbers, dates, various types of codes, and logos on a wide variety of materials, including multiple metals, rubber, certain plastics, electroplated surfaces, and epoxy resin. This flexibility makes it an excellent marking solution for diverse industries.
Our KR-AM20 mini 20W fiber laser marking machine is one of the most cost-effective options on the market. It creates permanent markings on metal components without the need for consumables, reducing your operational costs. Its portable design, coupled with a user-friendly interface, ensures easy operation and enhances productivity, making it the perfect choice for businesses looking to optimize their marking processes.
How to Use the KR-AM20 Fiber Laser Marking Machine
Welcome to our comprehensive step-by-step guide on how to operate the Qtctech Laser KR-AM20 20W mini fiber laser marking machine. This guide is designed to take you through each step, ensuring you can operate our machine with confidence, precision, and ease.
In this instructional guide, you’ll find the following steps:
Step 1: Connect the KR-AM20 to the power supply and switch it on.
Step 2: Link the machine to your computer or mobile device and launch the accompanying software.
Step 3: Design your desired marking content directly within the software.
Step 4: Adjust the focus and position of the marking area using the software’s tools.
Step 5: Configure the output power, marking speed, and other parameters before initiating the marking process.
Why Choose Our 20W/30W Mini Portable Fiber Laser Marking Machine
When it comes to laser marking solutions, our mini fiber laser marker stands out with its exceptional features and benefits tailored for businesses. Here’s why it’s a go-to choice:
Advanced Remote Control Capabilities
The fiber laser marking machine from Qtctech Laser can be controlled remotely via computer or mobile devices through Wi-Fi connectivity. This computer-controlled operation ensures precise and consistent marking, providing flexibility to manage tasks even from afar. This mobility allows operators to maintain productivity without being physically present, enhancing operational efficiency.
Compact and Portable Design
Our mini laser marker is designed for portability and ease of use in various work environments. Its compact size means it can be easily transported and deployed wherever needed. This adaptability makes it an ideal solution for businesses that require on-the-go laser marking, enabling them to extend their marking capabilities to different locations and projects without constraints.
Precision Non-Contact Marking
The Qtctech Laser mini fiber laser marker utilizes non-contact laser processing, ensuring that the marking is achieved without physically touching the material surface. This non-contact approach is critical for marking delicate or sensitive items, as it delivers high-quality results without causing any damage or deformation. Perfect for intricate markings, this ensures products retain their integrity and appearance.
Durable and Abrasion-Resistant Marks
The fiber laser marker produces marks that are highly resistant to abrasion. These permanent markings remain clear and legible even under challenging conditions, providing reliable traceability for years to come. Whether exposed to wear, chemicals, or harsh environments, the durability of these markings supports enhanced identification and tracking, essential for demanding industrial applications.
Cost-Effective with No Consumables
Our fiber laser marking solution eliminates the need for consumables like ink or cartridges. Operating purely on advanced laser technology, the fiber laser marker reduces operating costs significantly by cutting out recurring material expenses. This not only lowers the total cost of ownership but also supports an eco-friendly approach by minimizing waste.
User-Friendly Interface
Qtctech Laser’s mini fiber laser marker comes with an intuitive operating system, making it easy for users to learn and operate. With straightforward navigation and simplified parameter settings, businesses can get their marking tasks done quickly, minimizing training time and downtime. This efficiency drives productivity and allows for a smoother workflow.
Maintenance-Free Operation
Engineered for reliability, our mini fiber laser marker is designed to be maintenance-free. It does not require regular servicing or part replacements, reducing the time and costs associated with upkeep. This design ensures uninterrupted operation, providing businesses with a dependable laser marking solution that focuses on maximizing uptime and minimizing disruptions.
