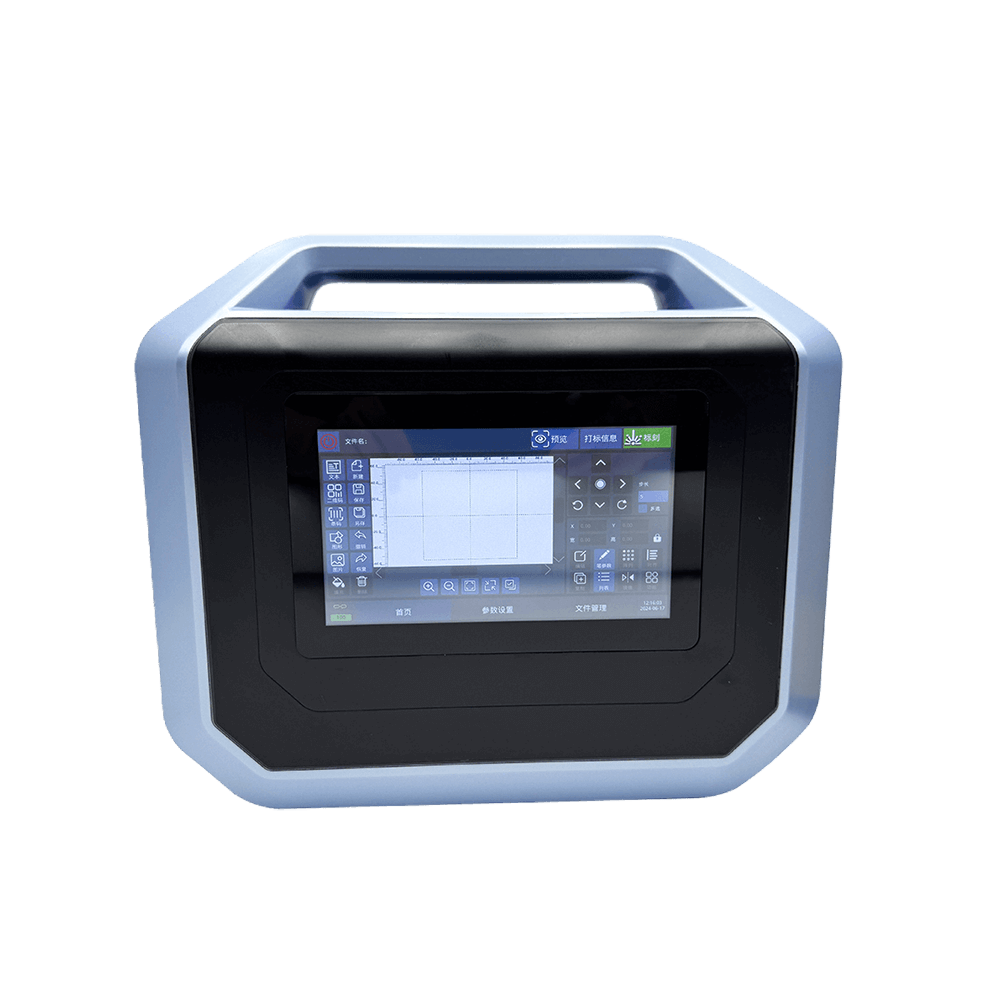

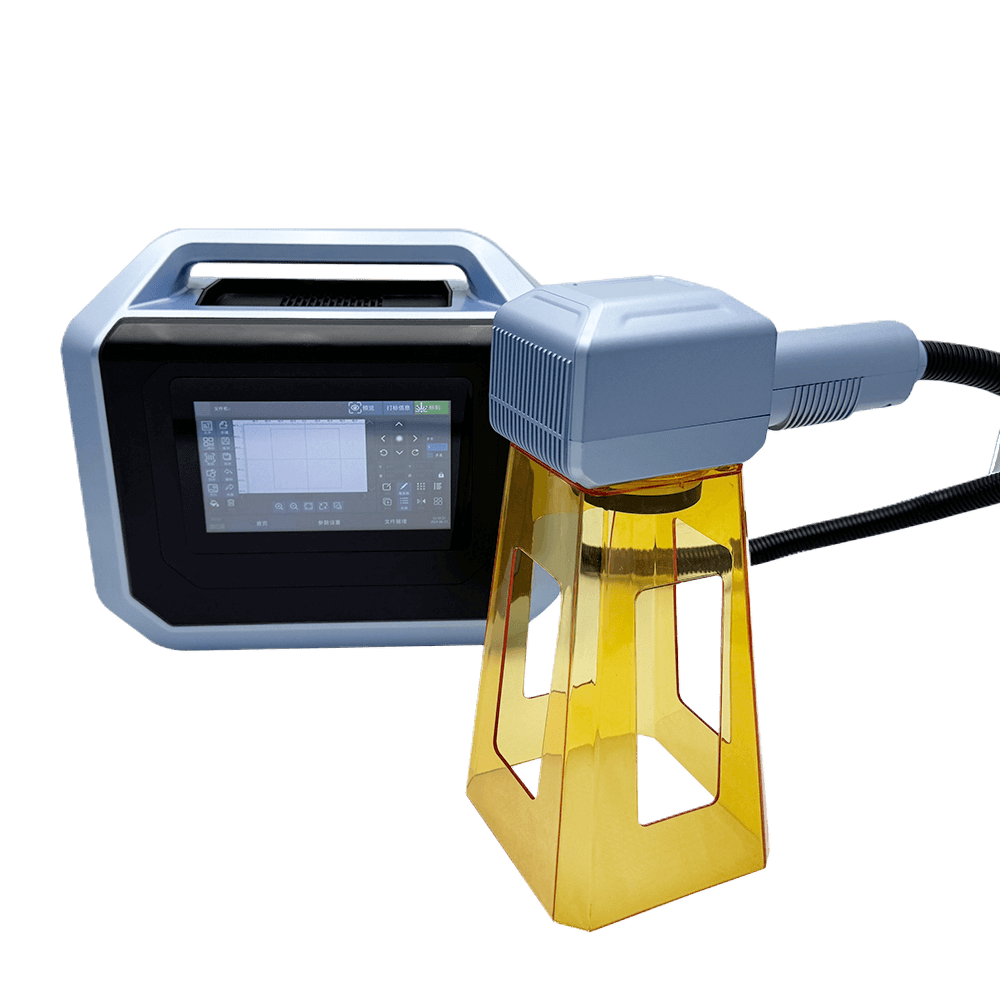

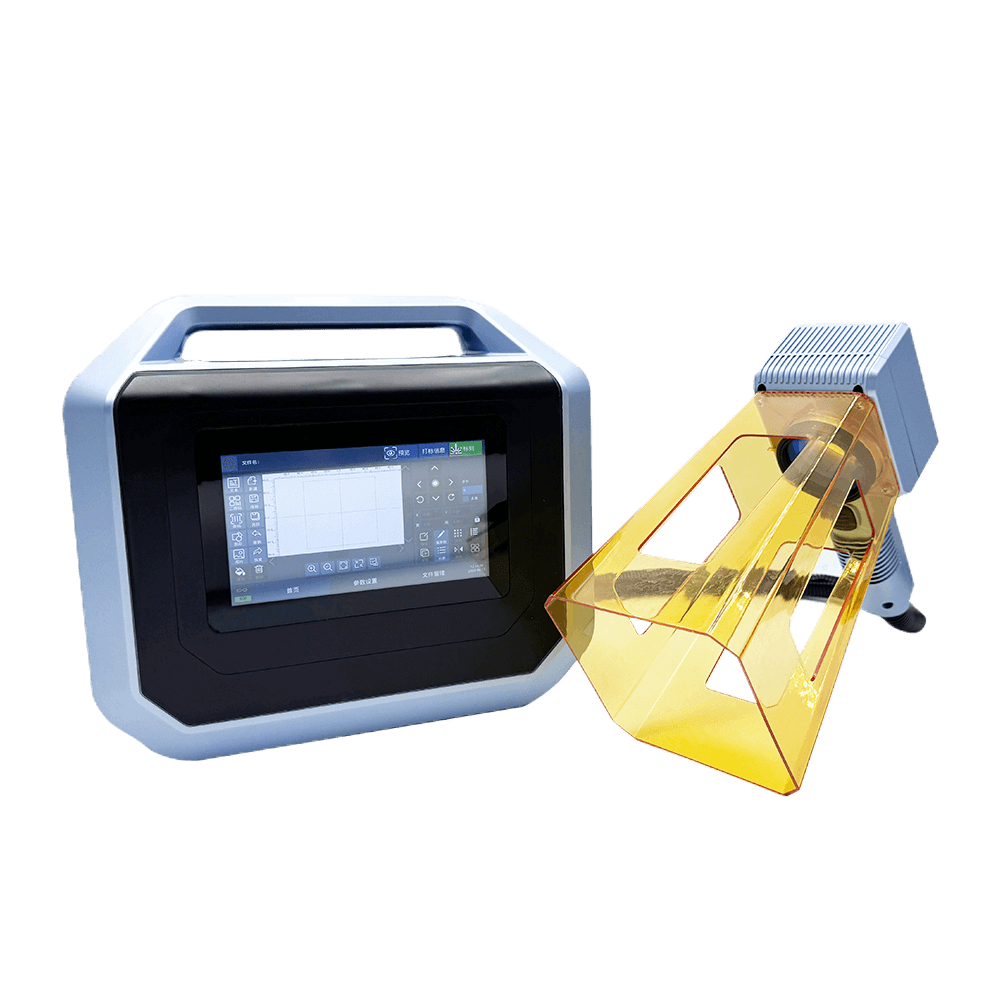

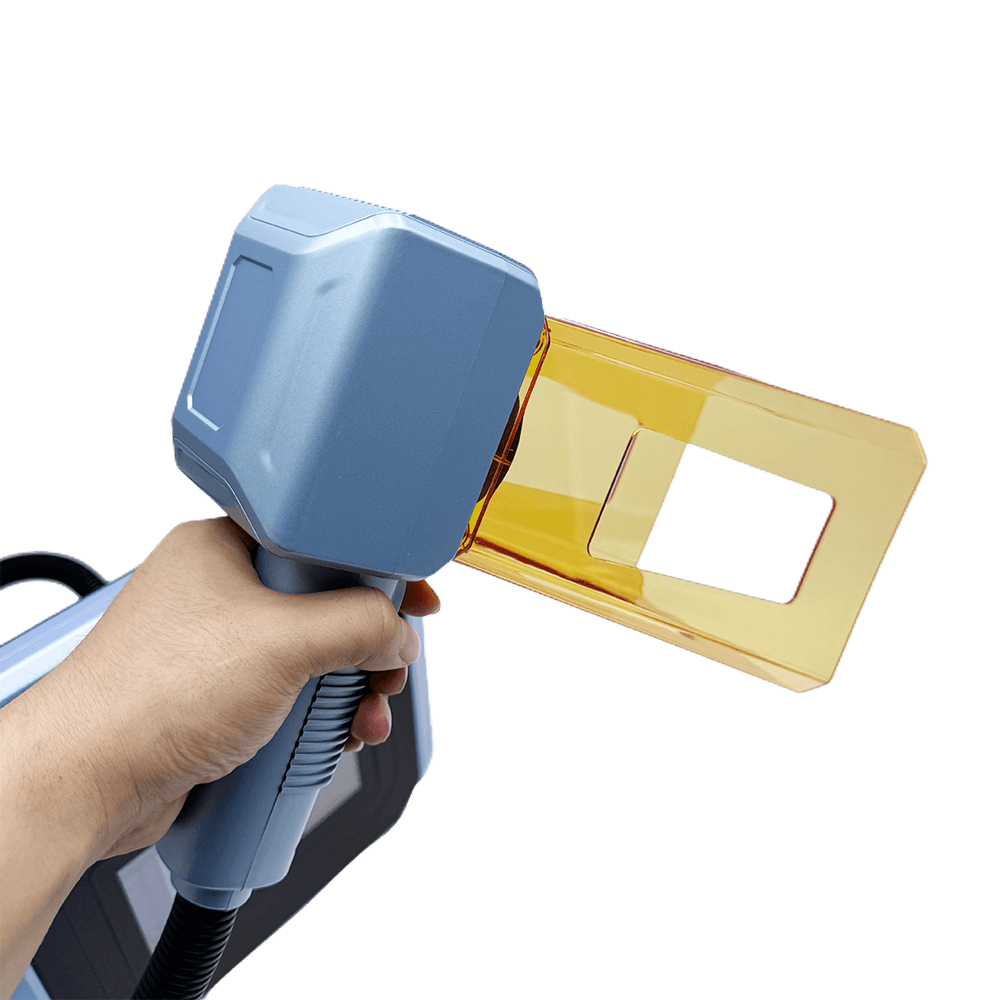

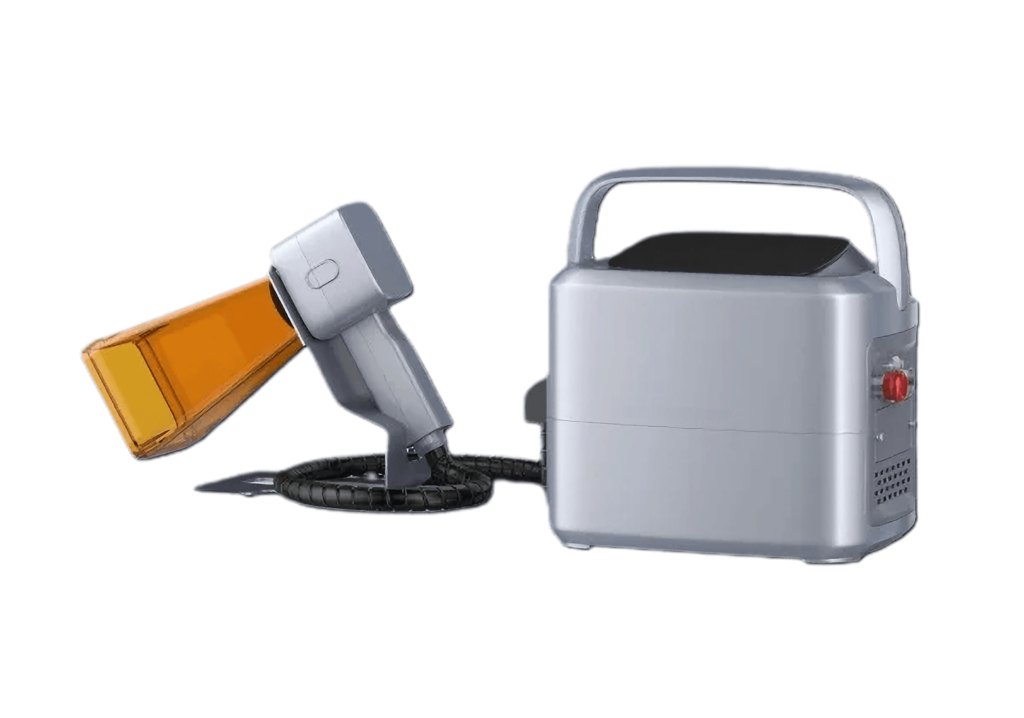

Hand-held Laser Marking Machine
Short Description:
Qtctech Laser’s handheld laser marking machine is compact and highly portable, weighing only 8.25kg. Our handheld laser marking machine features a sleek, integrated design that allows for easy transport and use in various environments, ensuring seamless marking wherever needed.
Parameters
| OPERATING ENVIRONMENT | |||
| Model | KR-HF20 | KR-HF30 | KR-HF50 |
| Supply voltage | 110V/220V 50/60Hz | 110V/220V 50/60Hz | 110V/220V 50/60Hz |
| Overall Power Consumption | 460W | 490W | 550W |
| OPTICAL PARAMETERS | |||
| Output Power | 20W | 30W | 50W |
| Galvo Head | ZBTK/Sino-galvo | ZBTK/Sino-galvo | ZBTK/Sino-galvo |
| Marking Area | 120mm*80mm | 120mm*80mm | 120mm*80mm |
| Marking Linewidth | 0.01mm-0.1mm | 0.01mm-0.1mm | 0.01mm-0.1mm |
| Minimum Character Size | 0.15mm | 0.15mm | 0.15mm |
| Power Adjustment Range(%) | 0-100(Gradient Adjustable) | 0-100(Gradient Adjustable) | 0-100(Gradient Adjustable) |
| Marking Speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Fiber Cable Length | 3m | 3m | 3m |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Cooling Method | Air-cooled | Air-cooled | Air-cooled |
| MACHINE PARAMETERS | |||
| Machine Dimensions | 270mm*155mm*245mm | 270mm*155mm*245mm | 270mm*155mm*245mm |
| Machine Weight | About 8.25Kg | About 8.25Kg | About 8.25Kg |

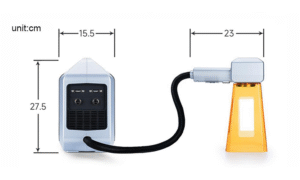

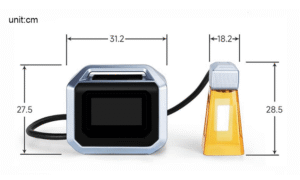

Size
Advantages Of Hand Held Laser Marking Machine
-
Built-in Battery Design for Mobility and Extended Use
The handheld laser marking machine from Qtctech Laser comes equipped with a 24V lithium battery (optional) with a 12AH large-capacity design, allowing it to operate continuously for 12-16 hours under standard conditions. This built-in battery design ensures that users can perform marking tasks without being tethered to a power source, making it highly suitable for on-site operations or fieldwork. The battery management system optimizes power usage and prolongs battery life, providing a reliable power supply for extended periods. -
Portable, Versatile, and Adaptable Across Various Environments
Qtctech Laser’s handheld laser marking machine series offers three versatile models: a portable laser marker, a desktop laser marker (optional), and a flight-design laser marker (optional). These machines are designed to cater to various environments, from high-precision marking tasks in factories to flexible outdoor use for large or immovable objects. The ergonomic design ensures easy handling and transport, while the adaptability across different workspaces allows users to switch seamlessly between tasks, enhancing productivity and reducing downtime. -
Enhanced with a Secure and High-Performance Linux System
The Qtctech Laser handheld laser marking machine utilizes an advanced Linux operating system powered by an 8-core processor, providing a high level of security and stable performance. This robust configuration ensures rapid response times and high marking efficiency, making it ideal for industries that require quick turnaround times and precision. The system’s open architecture allows for future upgrades and customization, ensuring compatibility with new software and hardware advancements.
These enhanced features make the handheld laser marking machine from Qtctech Laser a versatile and efficient tool for diverse marking needs, from industrial environments to outdoor applications, providing unmatched flexibility and reliability for professional users.
